Product Details

Brand:N/A MPN:Does Not Apply

Product Description


EATON VICKERS V2020 1F13S7S DOUBLE VANE FIXED DISPLACEMENT HYDRAULIC PUMP B28

Vickers are now part of the Eaton Group which include the other brands Char-Lynn, Sumitomo, Hydro-Line, and Aeroquip. EATON VICKERS V2020 1F13S7S DOUBLE VANE FIXED DISPLACEMENT HYDRAULIC PUMP B28 designs, manufactures and globally markets a complete line of reliable, high-efficiency hydraulic components for markets including agriculture, construction, industrial, mining, fishing, marine and lawn and garden.
PRODUCTS MANUFACTURED BY EATON
Adaptors Brake Valves Cylinders Directional Valves Disc Valve Motors Filters
Fittings Fluid Analysis Services Gear Pumps and Motors Hose Hose Assemblies Hydrostatic Power Steering
Hydraulic Products and Systems
Light-Duty Transmissions Piston Pumps and Motors Power Units and Filters Proportional Valves
Screw-in Cartridge Valves Transaxles Vane Pumps and Motors
EATON VICKERS is a world-renowned hydraulic brand owned by the Eaton Group Fluid Power Division. Its main products include hydraulic pumps, motors, hydrostatic products, valves, steering gears, cylinders, power units, accessories, filters and so on.
EATON VICKERS V2020 1F13S7S DOUBLE VANE FIXED DISPLACEMENT HYDRAULIC PUMP B28 is a world-renowned hydraulic brand owned by the Eaton Group Fluid Power Division.
Its main products include hydraulic pumps, motors, cylinders, hydraulic valves and so on. Eaton's fluid power products are widely used, including earthmoving machinery, agriculture, construction, aviation, mining, forestry, public facilities and material handling.
Eaton is the world's leading manufacturer of diversified industrial products and enjoys a highly technologically advanced and reliable reputation in the global industry. Has more than 125,000 employees in more than 125 countries on 6 continents. With annual sales of EATON VICKERS V2020 1F13S7S DOUBLE VANE FIXED DISPLACEMENT HYDRAULIC PUMP B28 . Products related to automotive, truck, heavy equipment, civil aviation, defense and military, residential, telecommunications and data transmission, industrial equipment and public facilities, business and government agencies, as well as sports and entertainment in various fields.
<!-- Thumbnail Image Frame: --><!-- Image Frame: --><!-- Description Frame: --><!-- Image Area Frame: --><!-- Image Top Area Frame: --><!-- ====================================================================== --><!-- :::::::::::::::::::::::::::::::::::: background images :::::::::::::::::::::::::::::::::::: --><!-- :::::::::::::::::::::::::::::::::::: title and subtitle :::::::::::::::::::::::::::::::::::::::::: --><!-- title field: --><!---->EATON VICKERS V2020 1F13S7S DOUBLE VANE FIXED DISPLACEMENT HYDRAULIC PUMP (B28) <!----><!-- /title field --><!-- subtitle field: --><!----><!-- /subtitle field --><!-- :::::::::::::::::::::::::::::::::::: layout and description :::::::::::::::::::::::::::::::::::::: --> <!-- This code may not be used or modified unless you own a license for GarageSale! --><!-- :::::::::::::::::::::::::::::::::::: item description starts here :::::::::::::::::::::::::::::::::::::::: -->

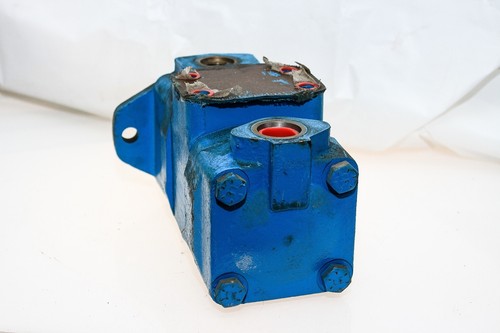

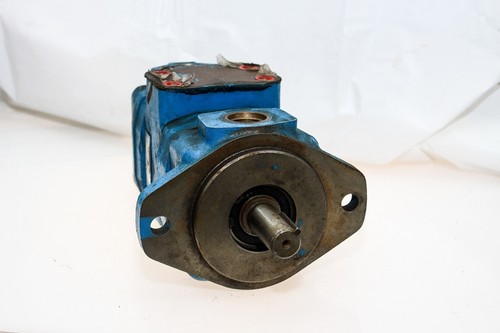

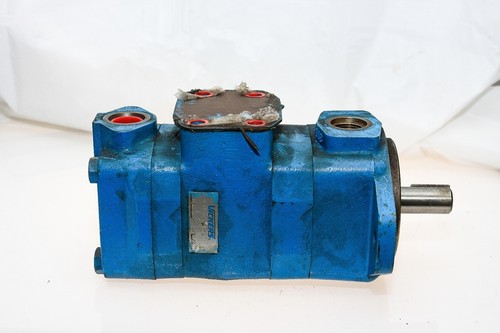

HERE WE HAVE A EATON VICKERS V2020 1F13S7S DOUBLE VANE FIXED DISPLACEMENT HYDRAULIC PUMP



HAS SOME SHELF WEAR BUT DOES NOT APPEAR TO HAVE BEEN USED



#1 OUTLET PORT CONNECTION WITH PORT ORIENTATION (VIEWED FROM COVER END OF PUMP):

SAE STR.THD.-1.0625-12 UN-2B (12MB); OPPOSITE INLET

#2 OUTLET PORT CONNECTION WITH PORT ORIENTATION (VIEWED FROM COVER END OF PUMP):

SAE STR.THD.-1.0625-12 UN-2B (12MB); OPPOSITE INLET

COVER END PUMP GPM AT 1,200 RPM AND 100 PSI:

7 GPM

INLET PORT CONNECTION:

SAE 4 BOLT FLANGE X 2.0000 IN.

INTEGRAL VALVE OPTION (FLOW RATE) AND (RELIEF VALVE SETTING):

NO INTEGRAL VALVE WITH THIS PUMP

SHAFT END PUMP GPM AT 1,200 RPM AND 100 PSI:

13 GPM

Shaft Size:

.8730 IN. MAJOR DIAMETER

Shaft Type:

13 TOOTH SPLINE

ADDITIONAL SHAFT INFORMATION:

16/32 DIAMETRAL PITCH; MAJOR DIAMETER FIT

CAPACITY:

51

COVER END PUMP GEOMETRIC DISPLACEMENT AT 1200RPM AND 100PSI:

1.39 CU. IN.

EXTERNAL SHAFT LENGTH:

1.6200 IN.

FLANGE BOLT HOLE CIRCLE:

5.7500 IN. BOLT HOLE CENTER

FOOT MOUNT:

FB-B-10 FOOT BRACKET; SOLD SEPARATELY

GENERAL DESCRIPTION:

DOUBLE VANE, FIXED DISPLACEMENT

MAXIMUM PRESSURE FOR COVER END PUMP:

2,500 PSI

MAXIMUM PRESSURE FOR SHAFT END PUMP:

2,200 PSI

MAXIMUM SPEED FOR COVER END PUMP:

3,000 RPM

MAXIMUM SPEED FOR SHAFT END PUMP:

2,400 RPM

MAXIMUM WIDTH OF FLANGE:

6.8800 IN.

OUTLET PORT CONNECTION NO. 1:

SAE STRAIGHT THREADS - 1.0625-12 UN-2B (12MB)

OUTLET PORT CONNECTION NO. 2:

SAE STRAIGHT THREADS - 1.0625-12 UN-2B (12MB)

OVERALL LENGTH (FROM FLANGE TO END OF PUMP):

8.9900 IN.

PACKAGE QUANTITY:

1 EACH

PILOT DIAMETER:

4.0000 IN.

PORT ORIENTATION (VEIWED FROM COVER END OF PUMP):

WITH NO.1 OUTLET OPPOSITE INLET: NO. 2 OUTLET OPPOSITE INLET

SEALS:

SINGLE NITRILE SHAFT SEAL

Series:

V2020

SERIES DESCRIPTION:

MOBILE; BALANCED VANE TYPE PUMP

SHAFT END PUMP GEOMETRIC DISPLACEMENT AT 1200RPM AND 100PSI:

2.59 CU. IN.

SHAFT ROTATION:

RIGHT HAND ROTATION

TYPE MOUNTING FLANGE:

2 BOLT FLANGE MOUNT

TYPE OF FLUID POWER PRODUCT:

HYDRAULIC PUMP

TYPICAL DELIVERY AT MAX SPEED AND PRESSURE FOR COVER END PUM:

16.5 GPM

TYPICAL DELIVERY AT MAX SPEED AND PRESSURE FOR SHAFT END PUM:

25.9 GPM

TYPICAL INPUT HORSEPOWER AT MAX SPEED AND PRESSURE FOR COVER:

30 HP

TYPICAL INPUT HORSEPOWER AT MAX SPEED AND PRESSURE FOR SHAFT:

39 HP

WEIGHT:

35.0 LBS.


60 DAY DOA WARRANTY

SURPLUS ITEM FROM WORKING FACILITY

WE SHIP SAME DAY OR NEXT DAY AND WILL EXPEDITE SHIPPING IF REQUESTED & PAID
